Understanding the Raft Algorithm: Replication and Fault Tolerance
Raft is a consensus algorithm designed for distributed systems. It enables a group of servers to operate coherently, even when some members fail.
How Raft Works
Raft relies on a deterministic state machine using a replicated log. Each node can be in one of the following three states:
- Follower: The default, passive state.
- Candidate: Attempts to become the leader after a timeout.
- Leader: Coordinates operations and replicates logs.

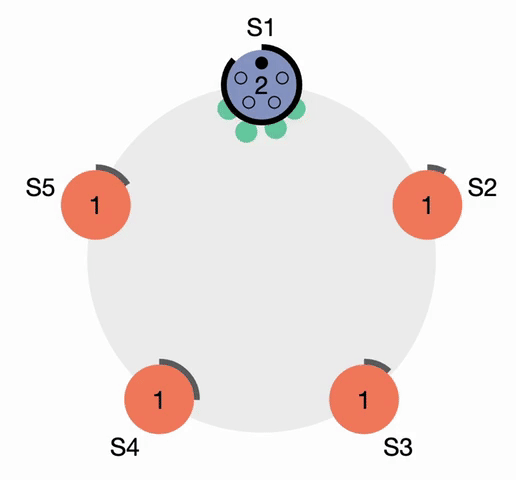

Leader Election
Followers receive regular heartbeats from the leader. If these messages are absent for a certain period, followers become candidates and initiate an election. The candidate that obtains a majority of votes becomes the leader.
Log Replication
The leader receives commands from clients, adds them to its log, and replicates them to followers. A command is considered committed when it is replicated on a majority of nodes, meaning consensus is achieved (e.g., in a network of 3 servers, consensus is reached if at least 2 share the same state).
Fault Tolerance
Raft guarantees fault tolerance by requiring a quorum (majority of nodes). For example, in a cluster of three nodes, a quorum of 2 is necessary, allowing the system to survive the failure of one node.
Consensus Details
The leader proposes changes to other nodes (followers) by sending Append Entries RPCs:
- If a follower accepts a proposal, it adds the entry to its log and sends a positive response to the leader.
- If a follower rejects a proposal, it sends a negative response to the leader, who must then identify and resolve the inconsistency before proposing the entry again. The leader sends additional messages to synchronize the logs. Once the logs are aligned, the leader resubmits the initial entry. If the follower accepts it, the entry is considered committed.
Real-World Use Cases
Kubernetes
In Kubernetes, etcd, which implements Raft, is used as a data store to maintain the state of clusters. Etcd ensures high availability and consistency of configuration data, pod states, and other critical information. When the etcd leader fails, a new leader is automatically elected, allowing the cluster to continue functioning without significant interruption.
Blockchain
Some blockchain projects use variants of the Raft algorithm to ensure consensus among participating nodes. For example, Quorum, a blockchain platform based on Ethereum, uses Raft for managing transactions and states. Raft allows Quorum to ensure that all nodes validate and apply the same transactions consistently and reliably.
Conclusion
Raft ensures consensus in distributed systems by guaranteeing replication and fault tolerance operations. Systems like etcd use Raft to provide high availability and reliable data management, making it a critical component for modern distributed applications.
For more information => https://raft.github.io/raft.pdf
